首要手艺参数：Main Technical Parameters

机型 Model	CLFQ-W1300	CLFQ-W1600
质料宽度 MAX.Width of raw material	1300mm	1600mm
放卷直径 Max.parent Web Diameter	Φ1200mm	Φ1200mm
收卷直径 Max.Rewinding Diameter	Φ1000mm	Φ1000mm
机器速率 Max.Machine Speed	10-300m/min	10-300m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	19KW	23KW
分量 Machine Weight	4300kg	4800kg
形状尺寸 Overall Dimensions	2700×2900×1800mm	3000×2900×1800mm
分切宽度 Min.Slitting Width	50mm

可都按照生成物ajax请求 个人定制紫装。

Can ൩be made according to the product requires special equipment.

物质声明共用整体规模该设备合吃于各项大规模自粘卷材防水的模切，如30g/m2-300g/m2牛皮革纸、白夹纸、淋膜纸、铝泊、PVC可塑料、锡纸等自粘卷材防水的模切、复卷等。身体及的特色1. 什么是服务器宽容异步步进驱动器有限公司(矢量图有限公司)合理、主动性锥度拉伸应变，在期间卷取体例。台式主机宽容变頻变频调速，持续推动下表中衡执行。2. 积极计米、报警灯副作用。收卷认识自己A、B气胀轴方式 ，卸装操控方便快捷。3. 放卷进行光电技术主动性纠偏修复风险管理体系，使不规则文件能一样分切机。4. 圆刀纵切废边主动的污染物加装。5. 汽压式相互送料，配气胀轴。6.导轨式自动上下料配备。

product manual

Scope of application

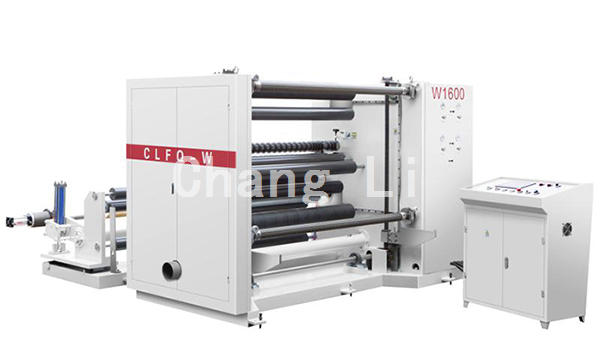

This machine is suitable for the slitting of various 🌠super-large coils, such as slitting and rewinding of 30g/m2-300g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.

Performance and characteristics

1. The machine adopts asynchronous servo motor (vectꦏor motor) control, automatic taper tension and center winding method. The main engine adopts frequency conversion speed regulation to maintain balanced operation during acceleration.

2. Automatic metering and alarm function. The winding adopts the A and B air expansion sꦍhaft structur💫e, and the unloading operation is convenient.

3. Unwinding adopts photoelectric automatic correction correction system to m🌌ake irregular materials cut normally.

4. The circular knife cuts the waste side automatic🐈 di🧸scharge device.

5. Hydraulic automatic feeding, with🍌 air expansion shaft.

6. Rail type automatic cutting device.
