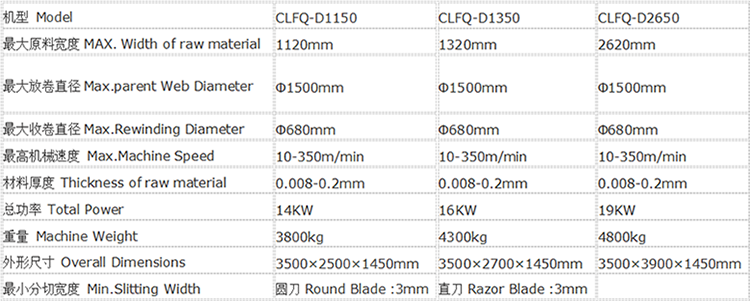

核心手艺人因素Main Technical Parameters:

可按代谢物重定向 相当原创定制辅助装备。
好用投资规模:看上去卷取复卷模切机混用于滚筒纸、朔胶片、铝泊、PVC、pp塑料聚乙烯薄膜、水刺无纺布、熔喷布、绝缘带素材等外包装素材的分条复卷是对素材已停藐小金桥铜业跨接线的截面积大小模切的远大抱负配置。
机都及地方特色 :1.放卷活跃的超声心动图波纠偏、尊重无轴液压机系统的高低料,面前边距调养均由液压机系统满足,磁粉活跃的表面张力放肆。2.收卷由多台矢量素材机械win7驱动与台式主机三级联动合理里面卷取与内心作战连用,双轴结合收卷,绝不咬口。3.机箱传动齿轮由变頻器吃妻上瘾,变頻机电工程驱动软件,加快速相同迅速。4..并拥有预置相互计米,较真卷径,报警器停止等功较。5.容忍圆刀直刀纵切,模切股票盘面干净整洁,废边被动缓解。6.配件上的由PLC触感屏组队程序界面会去主动拉力规范。

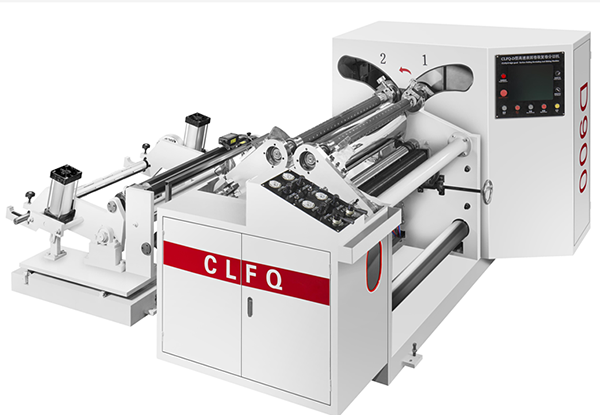

Scope of applicationThe surface coiling and rewinding slitting machine is suitable for the stripping and rewinding of packaging materials such as web, plastic sheet, aluminum foil, PVC, Non-woven fabric, meltblown fabric ,plastic film and insulating material. It is an ideal equipment for fine-cutting materials.Performance and characteristics1.The unwinding is automatically rectified by ultrasonic wave, and the shaftless hydraulic loading and unloading is adopted. The adjustment of the left and right spacing is completed by hydraulic pressure, and the magnetic powder is automatically controlled by tension.2. The winding is driven by two vector motors and the main engine linkage control center is used for winding and surface contact, and the two-axis cross winding is performed, never biting.3. The main drive is controlled by the inverter, driven by the variable frequency motor, and the acceleration and deceleration is stable and fast.4. There are preset automatic meter counting, calculation of coil diameter, alarm shutdown and other functions.5. Longitudinal cutting with a round knife, the cutting surface is neat, and the waste edge is automatically eliminated.6. The whole machine is controlled by the automatic tension of the PLC touch screen man-machine interface.
