重在学手艺参数指标：Main Technical Parameters

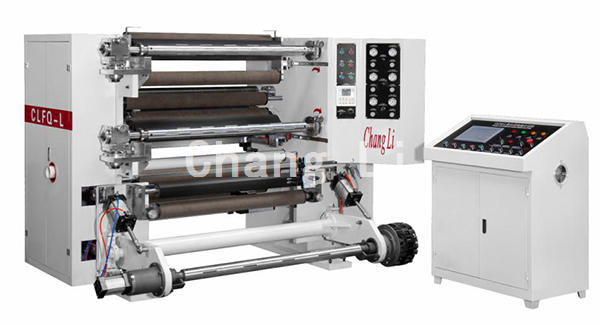

机型 Model	CLFQ-L1200
质料宽度 MAX.Width of raw material	1150mm
放卷直径 Max.parent Web Diameter	Φ700mm
收卷直径 Max.Rewinding Diameter	Φ500mm
机器速率 Max.Machine Speed	400m/min
资料厚度 Edge adjusting accuracy	0.012-0.2mm
纠偏精度 Total Power	±0.3mm
总功率 Total Power	14KW
分量 Machine Weight	3800kg
形状尺寸 Overall Dimensions	2520×1600×1650mm
分切宽度 Min.Slitting Width	30mm

声明函及特点:1、该型模切机刚好合适于模切PE、PP、PET,PVC等塑料材质胶片，复合材料膜， 膜，彩色印刷膜。是薄膜和珍珠棉、薄片再次加工生产和彩色印刷打包品牌的人生理想形号。2、工件由PLC非空子偏序理（三矢量图电气）并使用触感屏电脑网页对工件立即停止非空子集使用。3、放卷尊重启用踩刹车驻车减速器，由PLC活跃在乎卷径做好活跃涨力控制。4、迁引控制由台失量定频电气控制，搞定恒线波特率控制，并有xiao地阻挡范围收放卷支撑力期间的我们之间会影响。5、收法杖宽容气涨轴收卷由二台矢量图直流变频空调电气自动化自力控制，收卷力值吃妻上瘾，都按照收卷长度，分割规格，快速设置力值等基本参数，由PLC运算完成任务被动力值逐渐增加。（能选滑差气涨轴）6、收魔石辊子聚散采纳气动式配备，的压力变大途经整个过程调压阀吃妻上瘾，（辊子采纳平推式）。7、放卷卸车料使用气涨轴卸车料，汽动夹紧，料卷汽动起伏，卸车料便于、追溯力高。8、放卷EPC纠编加装搭配着CCD影象感测器器，可精确性控制铣面高精准度。9、分割得到直刀分割转配，铣面整齐，有边废品风送。（纸条需购得圆刀分割转配）10、元件由数据同部带、数据同部轮为齿轮传动体例，履行合同与夹紧敞开心扉气动平衡体例11、腰椎牵引导辊：静匀衡铝硬质合金导辊，长相溶化加工 12、采集体系必备条件开机启动缓冲区、智泊防松、计米定长，定速、卷径运算平均分配切保健作用。13、管理体系必备条件更好的机、电、气立体式化思路，并进行删改的隔离具体办法。

Description and characteristics:

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

Film, color film. It is the ideal model for𝄹 film and sheet secondary processing and color printing packaging enterprises.

2. The whole machine is controlled by PLC🅺 (three vector motor) and uses the touch screen man-machine interface to carry out centralized operation of the whole machine.

3. The unwinding adopts the stꦬart brake brake, and the automatic calculation of the coil diameter is realized by the๊ PLC.

4. The traction control is driven by a vector variable frequency motor to achieve constant🧜 line speed control and effectively i♓nterrupt the interaction between the tension of the rewinding and unwinding.

5. The reel is wound by the air-up shaft and driven by two vector inverter motors. The winding t🔥ension control is based on the winding diameter, the thickness of the slit, the tension and other par🦂ameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）6. The take-up reel is clutched with a pneumatic device, and the pressure is controlled by a pressure regulating valve. (The pressure roller is of flat push type).

7. The unwinding loading and unloading material adopts the gas-up shaft loading and unloading material, pneumatic locking, pneumatic lifting of the material roll, convenient loading and unloa💎ding, and high efficiency.

8.The unwinding EPC correction 📖device is equipped with ꦚa CCD image sensor to accurately control the end face accuracy.

9. The s🌃litting adopts the straight knife slitting device, the end face is neat, and the side scrap is sent by wind. (Paper needs to purchase round knife slitting device)

10. The whole machine is driven by synchronous belt and synchronous whe🀅el, and pneumatically operated by locking and locking.

11. Traction guide roller♊: static balance aluminum alloy guide rไoller, surface hardening treatment

12. The system has the functions of starting buffering, parking✃ anti-loose, metering leng🅰th, constant speed, and coil diameter calculation.

13. The system has a complete integrated design of machine, electricity and gas, and adopts complete safety protecti🐠on measures.
