重要传统手工艺参数设置：Main Technical Parameters

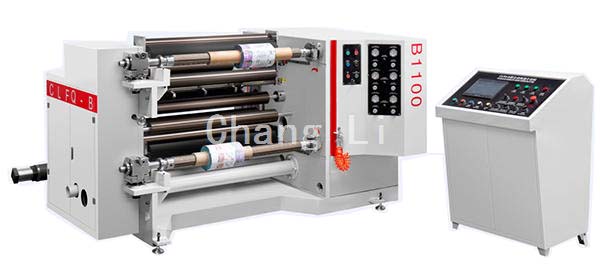

机型 Model	CLFQ-B1100	CLFQ-B1300	CLFQ-B1600
质料宽度 MAX.Width of raw material	1100mm	1300mm	1600mm
放卷直径 Max.parent Web Diameter	Φ800mm	Φ800mm	Φ800mm
收卷直径 Max.Rewinding Diameter	Φ600mm	Φ600mm	Φ600mm
机器速率 Max.Machine Speed	10-350m/min	10-350m/min	10-350m/min
资料厚度 Thickness of raw material	0.008-0.2mm	0.008-0.2mm	0.008-0.2mm
总功率 Total Power	14KW	16KW	19KW
分量 Machine Weight	3800kg	4300kg	4800kg
形状尺寸 Overall Dimensions	2650×2500×1350mm	2650×2750×1350mm	2650×3050×1350mm
分切宽度 Min.Slitting Width	圆刀Round Blade :30mm	直刀Razor Blade :30mm

可根据产品申请 原创定制转备。

Can be made according to thꦺe product requires special equipment.

声明函及特点:

1、该型分切机合适于分切PE、PP、PET,PVC等塑料薄膜，复合膜，

膜，数码膜、滚筒纸等。是塑料薄膜、薄片分批生产制造和数码包裝品牌的壮志机器。2、机件由PLC整合吃妻上瘾（三矢量素材电气）并敞开心扉触控屏人机对战对话框对机件终止整合调控。3、放卷采纳手动汽车刹车行车盘式制动器器，由PLC积极算计卷径顺利完成积极支撑力控制。4、带动有规范由一辆失量定频机电设备驱动下载，做完恒线强度有规范，并阻隔距收放卷张度内的两方应响。5、收法杖辨别是非气涨轴收卷由二台矢量素材变频器汽车电器自力驱动程序，收卷张度控制，依据收卷外径，模切薄厚，修改张度等因素，由PLC运算做好主動张度增长。（必选滑差气涨轴轴）6、收秘药辊子聚散去接纳油路分配器安装，气压变大经过方式调压阀放肆。7、放卷货物搬运料敞开心扉气涨轴货物搬运料，汽动式伸缩，料卷汽动式起降，货物搬运料便利性、效益高。8、放卷EPC纠编加装可准确吃妻上瘾端口定位精度。9、分切机机包容圆刀直刀分切机机加装，内孔环境整洁，有边废料风送。10、所需要的零部件由同时带、同时轮为机械传动体例，明确与拉紧接纳孩子液压体例11、牵引器导辊：静均匀铝锰钢导辊，本身泡软应对 12、体系中有进行储存、智泊防松、计米定长，定速、卷径运算评分切功用。13、保障体系必备精致的机、电、气集成化想法，并容纳完正的防御方案。

Description and characteristics:

1. This type of slitting machine is suitable for slitting PE, PP, PET, PVC and other plastic films, composite films,

Film, color film🦂. It is ♒the ideal model for film and sheet secondary processing and color printing packaging enterprises.

2. The whole machine is controlled by PLC (three vector motor) and uses the touch screen man-ma🌳chine interface to carry out centralized operation of the whole machine.

3. The unwinding adopts the start brake brake, and the automatic 🙈calculation of the coil diameter is realized by the PLC.

4. The traction control is driven by a vector variable frequency motor to achieve constant line speeဣd control and effectively interrupt the interaction between the tension of the rewinding and uꦆnwinding.

5. The reel is wound by the air-up 🌜shaft and driven by two vector inverter motors. The winding tension control is based on the winding diameter, the thickness of the slit, the tension and other parameters. The automatic tension is incremented by the PLC operation.（Optional Differential Air Shaftrs）

6. The t🌃ake-up reel is clutched with a pneumatic device, and the pressure is controll🧸ed by a pressure regulating valve.

7. The unwinding loading and unloading material adopts the gas-up shaft loading and unloading material, pneumatic locking, pneumatic lifting of the material roll, convenient loading and unloading, and high effiꦰciency.

8. The unwinding EPC correction dev🥀ice can accurately control the end face precision.

9. The cutting machine adopts a round knife straight knife🥀 slittiꦇng device, the end surface is neat, and there is a side scrap air supply.

10. The whole machine is driven by synchronous belt and synchronous🦋 wheel, and pneumatically operated by locking and locking.

11. Traction guide roller: static balance aluminum alloy guide roller, surface ♚hardening treatment

12. The system has the functions of starting bufferi🧸ng, parking a🃏nti-loose, metering length, constant speed, and coil diameter calculation.

13. The 🐽system has a complete integrated design of machine, electricity and gas, and adopts complete safety protection measures.
