基本工艺指标：Main Technical Parameters

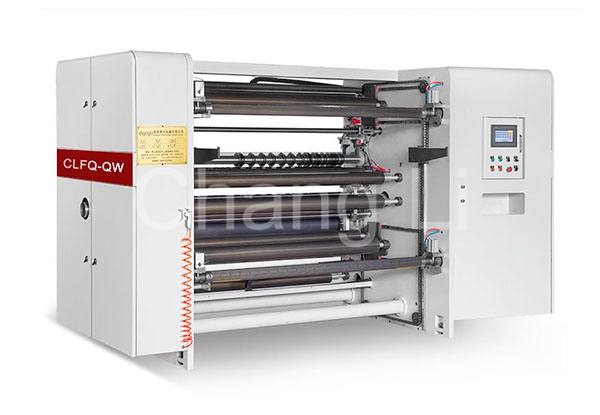

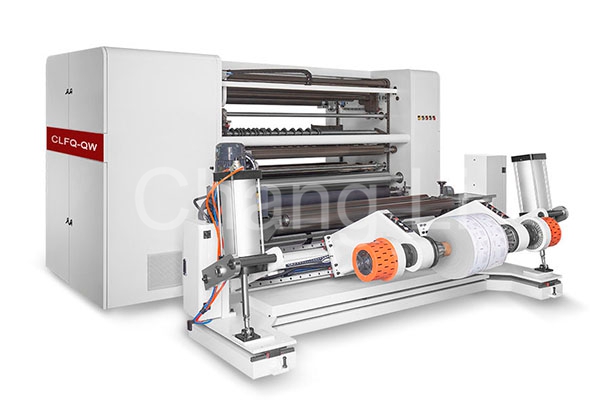

智能机型 Model	CLFQ-QW1300	CLFQ-QW1600
zui大资料参数MAX. Width of raw material	1300mm	1600mm
zui大放卷半径Max.parent Web Diameter	Φ1500mm	Φ1500mm
zui大收卷孔径Max.Rewinding Diameter	Φ1000mm	Φ1000mm
zui高系统浓度 Max.Machine Speed	10-400m/min	10-400m/min
总工作电压 Total Power	25KW	29KW
权重 Machine Weight	4300kg	4800kg
形状图片尺寸图 Overall Dimensions	3200×2900×2000mm	3200×3200×2000mm
zui小模切厚度 Min.Slitting Width	20mm	20mm

可按照产物请求 特别订制装备。

Can be made according to the product requires special equipment.

产物申明

混用整体规模该设备混用于多种巨巨型sbs防水的分割，如30g/m2-400g/m2人造革纸、白纸卡、淋膜纸、镀铝、PVC塑、锡纸等sbs防水的分割、复卷等。激活能及特色文化1. 终端服务器进行异步交流伺服电机建筑机电工程(矢量素材建筑机电工程)有节制、及时锥度弹力，之间卷取体例。设备主机进行直流变频空调变频调速，持续提高通常情况下衡正常运作。2. 分手后计米、报警功能功能。收卷接纳孩子A、B气胀轴方式 ，卸装操控生活便利。3. 放卷接受光电子积极主动纠偏批改作业安全体系，使不思维模式档案资料能通常分切机。4. 及时调刀体制（输出电压你需用的分切机要求一些排好钨钢刀），圆刀纵切废边及时摆放搭配。 5. 液压式积极强弱料，无轴装卷。6.导轨式主动权上下料安装。

product manual

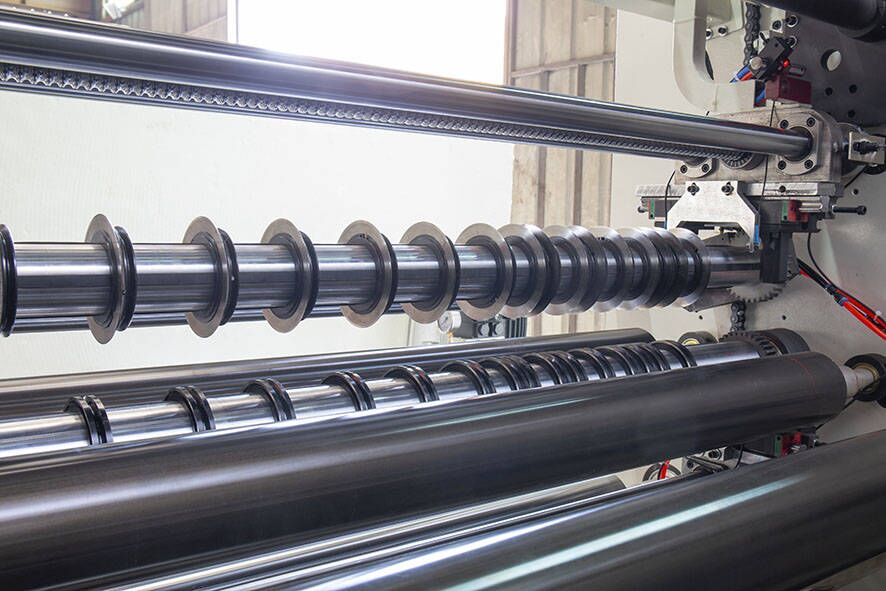

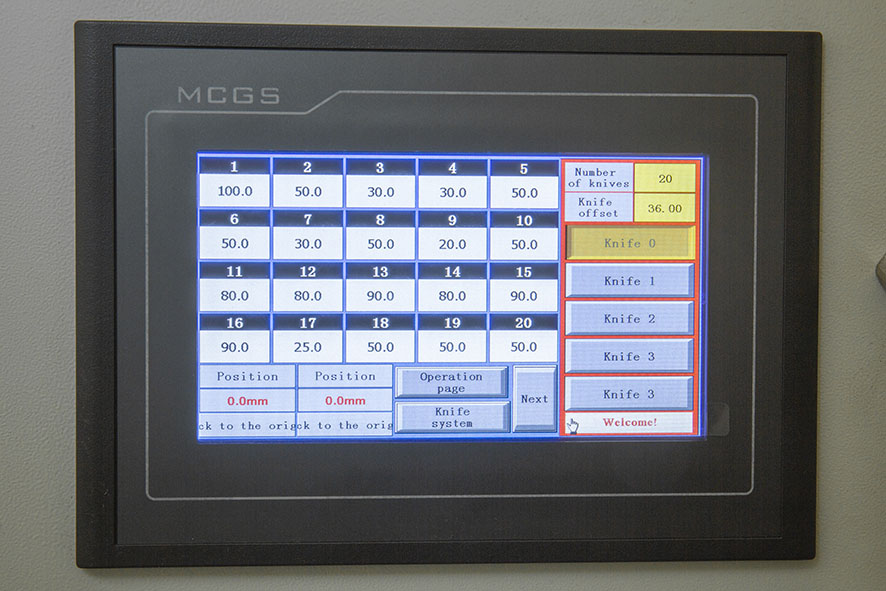

Scope of applicationThis machine is suitable for the slitting and rewinding of various super large coils, such as 30g/m2-400g/m2 kraft paper, white cardboard, coated paper, aluminum foil, PVC plastic, tin foil and other coils.performance and characteristics1. The machine adopts asynchronous servo motor (vector motor) control, automatic taper tension, and center winding mode. The host adopts frequency conversion speed regulation to maintain a balanced operation during acceleration.2. Automatic meter counting and alarm function. The rewinding adopts A and B inflatable shaft structure, which is easy to unload and operate.3. The unwinding adopts the photoelectric automatic correction system to make the irregular materials can be slit normally.4. Automatic tool adjustment system (input the slitting specifications you need to arrange the tools at one time), and the automatic discharge device for round knife longitudinal cutting waste.5. Hydraulic automatic loading and unloading, without shaft loading.6. Guide rail type automatic unloading device.
